DBL 1000 Kg Electric Hoist
In stock
Brands: DBL

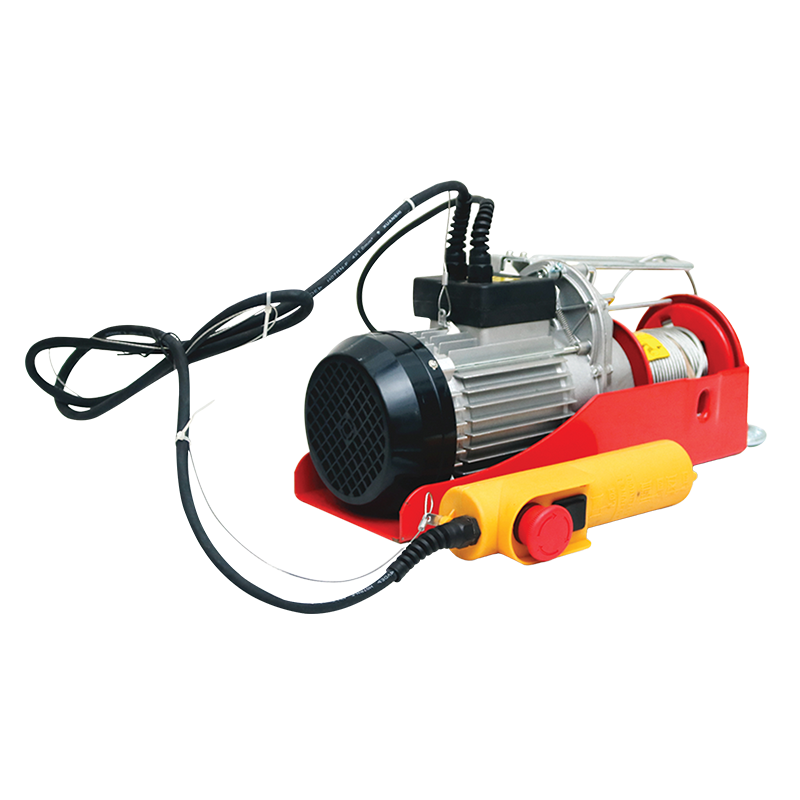

The DBL Electric Hoist is available in 500 kg and 1000 kg models, both featuring a copper motor and strong cables. They offer an IP 54 protection level. The 500 kg model can lift its full capacity to 10 meters and 250 kg to 20 meters. The 1000 kg model lifts 999 kg to 10 meters and 500 kg to 20 meters.
| Lifting Capacity | 999 Kg up to 10m Max.
500 Kg up to 20m Max. |
| Voltage | 230V~50 Hz |
| Current | 7.4A |
| Insulating Grade | B |
| Protecting Grade | IP54 |
| Group Of Mechanisms | M1 |
| Input Power | 1600W |
| Lifting Height | 10m/20m |
| Lifting Speed | 4/8m/min |
| Work Rate | S3-25%-10 min |
| Rope Diameter | 5.6mm |
| Rope Tensile Strength | ≥1770 N/mm2 |
